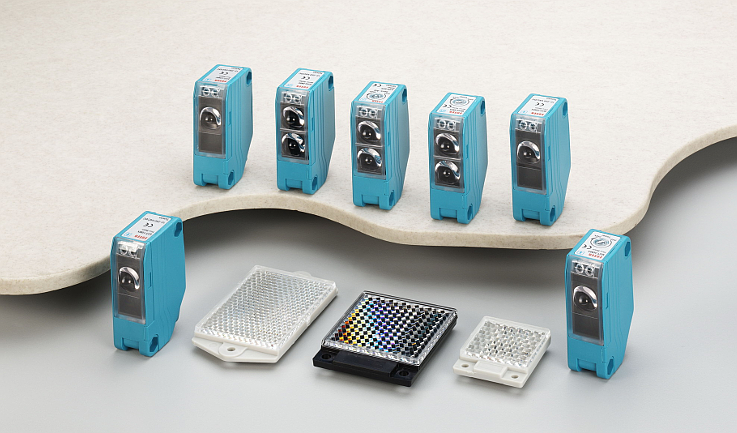

FOTEK臺灣陽明A3系列光電開關特點

1.廣泛工作電壓12VDC  or  20～260VAC / VDC

2.多重突波吸收回路，有效防止突波破壞。

3.採高亮度，低耗電流,投受光晶體，調變發射，感應距離特長，耐外亂光性特強。

4.高容量繼電器輸出3A/250VAC。

5.堅固結構IP-67(選型)適用於各種環境。

6.偏極光鏡片反射型(A3G-4MRE)，更便利於發亮物體之檢測。

FOTEK臺灣陽明A3系列漫反射式光電開關

Type

Standard Type

Water-Proof Type

Model

A3R-30X

A3R-1MX

A3R-2MX

A3R-30XP

A3R-1MXP

A3R-2MXP

Sensing Distance

30cm

100cm

200cm

30cm

100cm

200cm

Protection Class

IP-65

IP-67

Operating Voltage

12~240 VDC ; 24~240 VAC 50/60Hz

Output Method

Relay

Output Status

NO. <Received ON >

Sensitivity Adjuster

270    Trimmer

Emitter

Infrared LED

Min. Sensible Object

5.0

Weight

Appr.145g

Appr.155g

FOTEK臺灣陽明A3系列鏡面反射式光電開關

Model

A3G-2MR

A3G-2MRS

A3G-4MRE

A3G-4MX

A3G-2MRP

A3G-4MXP

Sensing Distance

3m

2m

4m

4m

3m

4m

Emitter

Red LED

Red LED

Red LED

Infrared LED

Red LED

Infrared LED

Sensing Adjuster

Trimmer

Without

Trimmer

Without

Protect Class

IP-65

IP-67

Operating Voltage

12~240 VDC ; 24~240 VAC 50/60Hz

Output Method

Relay

Output Status

NO. < Break ON >

Min. Sensible Object

.0                                 5.0                                 2.0                                          5.0

Weight

Appr.145g

Appr.155g

FOTEK臺灣陽明A3系列對射式光電開關

Type

Standard Type

Water-Proof Type

Model

A3T-3MX

A3T-10MX

A3T-20MX

A3T-3MXP

A3T-10MXP

A3T-20MXP

Sensing Distance

3m

10m

20m

3m

10m

20m

Protection Class

IP-65

IP-67

Operating Voltage

12~240 VDC ; 24~240 VAC 50/60Hz

Output Method

Relay

Output Status

NO. < Break ON >

Emitter

Infrared LED

Sensitivity Adjuster

Without

Min. Sensible Object

2.0

5.0                    10.0                   2.0                    5.0                    10.0

Weight

Appr.285g

Appr.305g

產品種類過多，頁面篇幅有限，其它資料不再一一列出，如有需要，請和我們聯系，我們將為您提供詳細的產品資料。

FOTEK陽明方型光電開關常用型號:A3R-30X、A3R-1MX、A3R-2MX、A3G-4MX、A3G-4MXB、A3R-4MX、A3T-3MX、A3T-10MX、E3T-10MX、MR-10X、

MR-30X、MG-2MX、MT-6MX、K2R-10N、K2R-30N、K2G-2MNE、K3G-8MRE。
